Aspen Avionics Flight Displays
FAA STC No. SR00350BO
Price: See Precision Heli-Support, LLC Price List
Applicability: MD Helicopters 369E/FF & 500N
Estimated Installation Hours: 24
Multiple Installation Configurations
The Aspen Avionic’s Evolution Flight Display (EFD) system is compact, lightweight Electronic Flight Instrument System (EFIS) with an integrated Air Data and Attitude Heading Reference System (ADHRS). Couple the PFD 1000 and MFD 1000 full flight instrumentation for reversionary capability.
The flight displays are capable of the following features: Airspeed Instrumentation, Altitude Pressure, Turn and Slip, Bank and Pitch, Vertical Velocity, Air Data Computer, Airborne Multipurpose Display, Emergency GPS, Airway Map Overlay, Secondary HSI, Reversionary Mode, Terrain and Obstacle database, and Moving Maps.

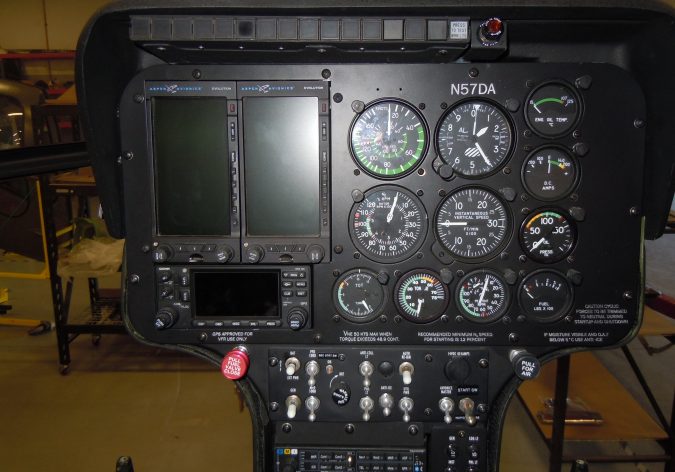

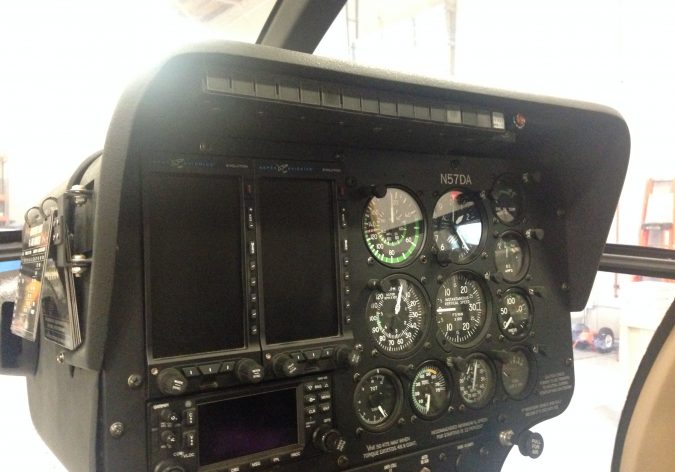

The Aspen Avionics Flight Display system comes in 4 different installation configurations. All components are located within the cabin of the aircraft to aid in minimizing installation time and maintenance.
Aspen Avionics Flight Display Configurations
|Configuration Name||Number of Displays||EFD Unit Type||Notes|
|Pilot||1||EFD1000H PFD Pilot||Slaved DG, No Selected Course & Bearing Pointers, GPS Interface limited|
|Pro||1||EFD1000H PFD Pro||–|
|Pro 1500||2||EFD1000H Pro &
|Pro 2000||2||EFD1000H PFD Pro &
|No mechanical Airspeed and Altitude indicators required.|
